Mobile Stands N20/N10

Mobile stand range for X-ray generators up to 20 kg

The mobile N20 (for generators up to 20kg) and N10 (for generators up to 10kg) stands can be adjusted continuously via a crank mechanism. They can be dismantled for transport within very short time.

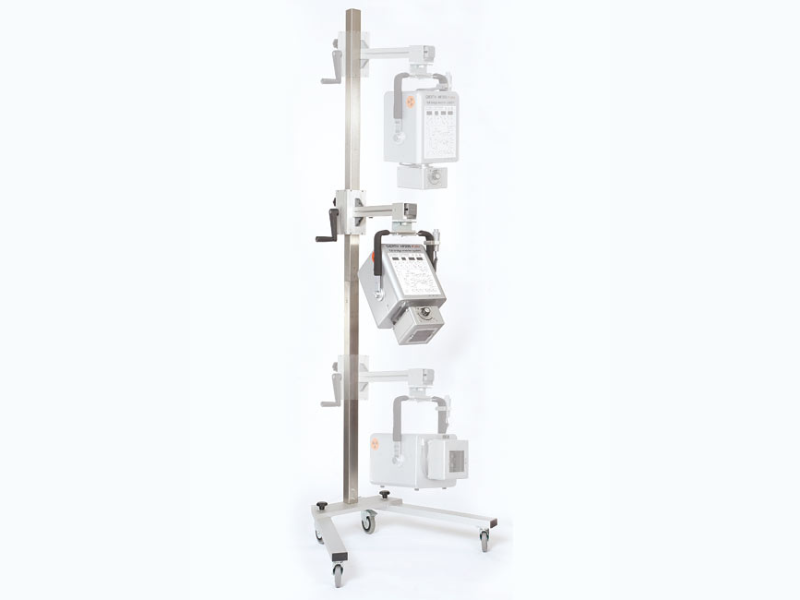

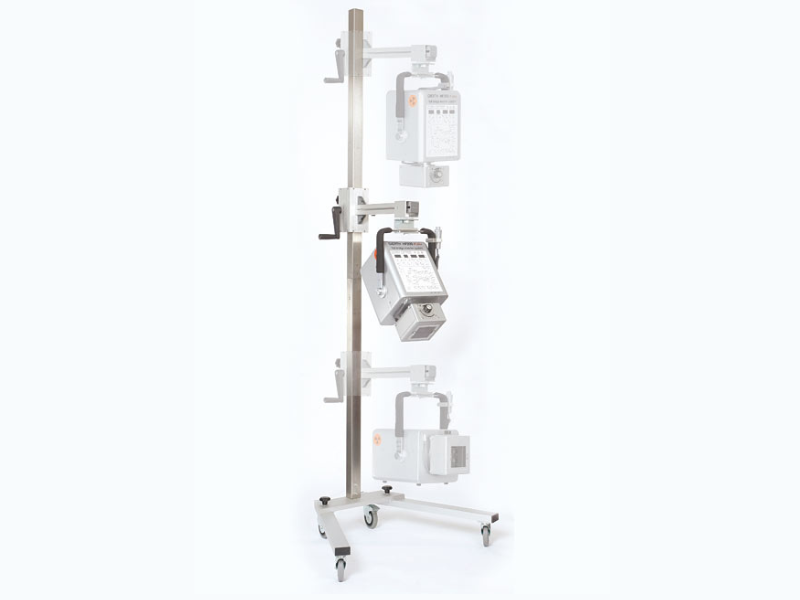

Mobile Stand N20

For X-ray generators up to 20 kg

Very stable and light moving tripod
With simplified height adjustable X-ray device holder
Continuously variable height adjustment at a distance of approx. 30 cm
Height adjustment by crank drive
Brakeable trapezoidal base with four castors
Can be rotated and swiveled in all directions
Weight: 20 kg
Dimensions (L x W x H): 70cm x 80cm x 100cm (extendible to 220cm)
Material: Corrosion resistant anodised aluminium, Stainless steel rod

Mobile Stand N10

For X-ray generators up to 10 kg

Very stable and light moving tripod with a brakeable four-roller foot
With simplified height adjustable X-ray device holder
Continuously variable height adjustment at a distance of approx. 30 cm
Height adjustment by crank drive
Brakeable trapezoidal base with four castors
Can be rotated and swiveled in all directions
Dimensions (L x W x H): 71cm x 68cm x 140cm (extendible to 225cm)
Weight: 9 kg
Material: Corrosion resistant anodised aluminium
